DD-WRT OpenVPN

Step 1

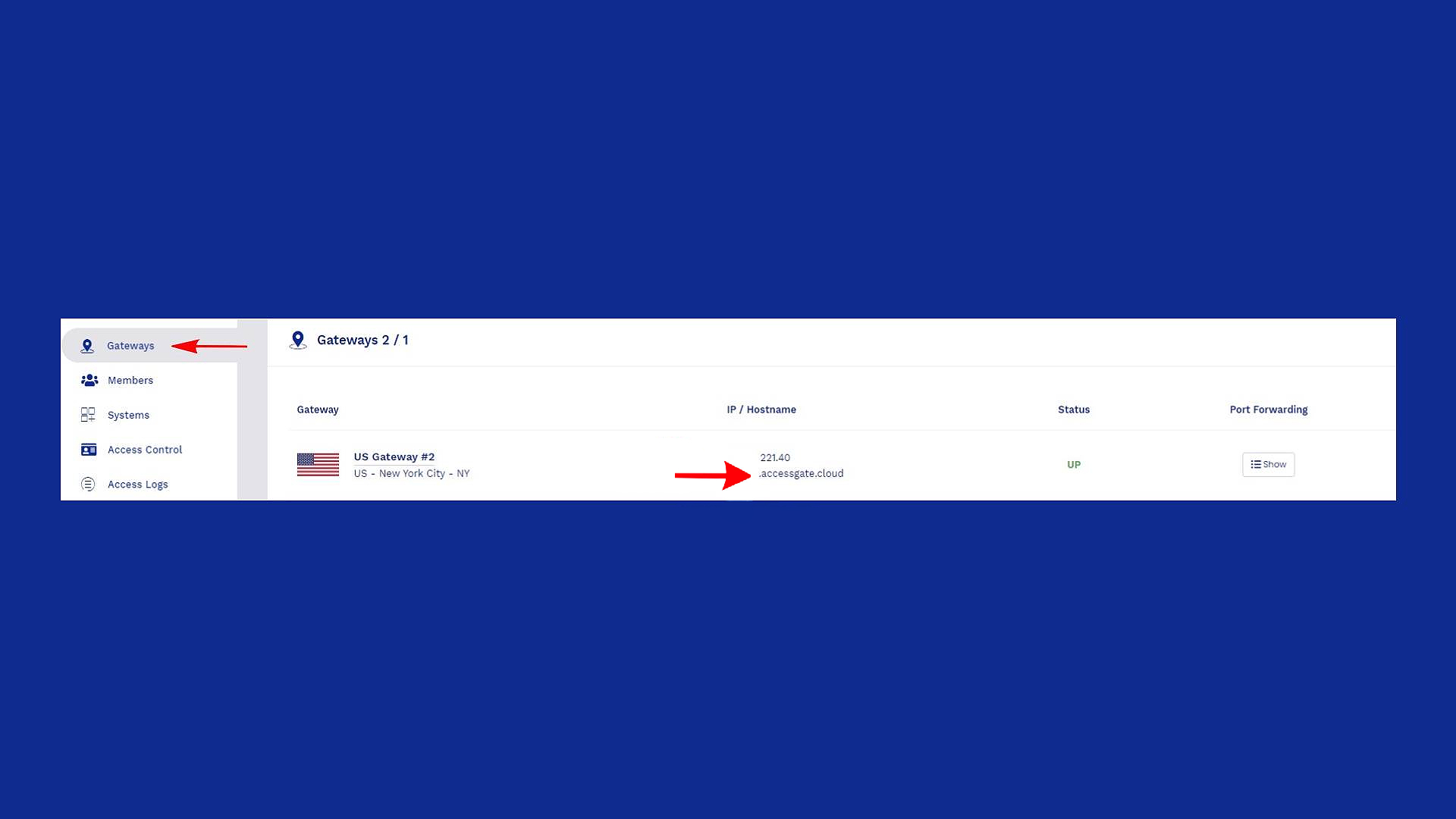

Get your VPN credentials, VPN Setup files, CA Certificate and Hostname of your Gateway.
How to get the VPN Credentials, VPN Setup files, CA Certificate and Hostname:
  • Ask your GoodAccess admin to provide you with your credentials and the VPN Setup files.
  • Or become a GoodAccess admin by activating your own team.

Step 2

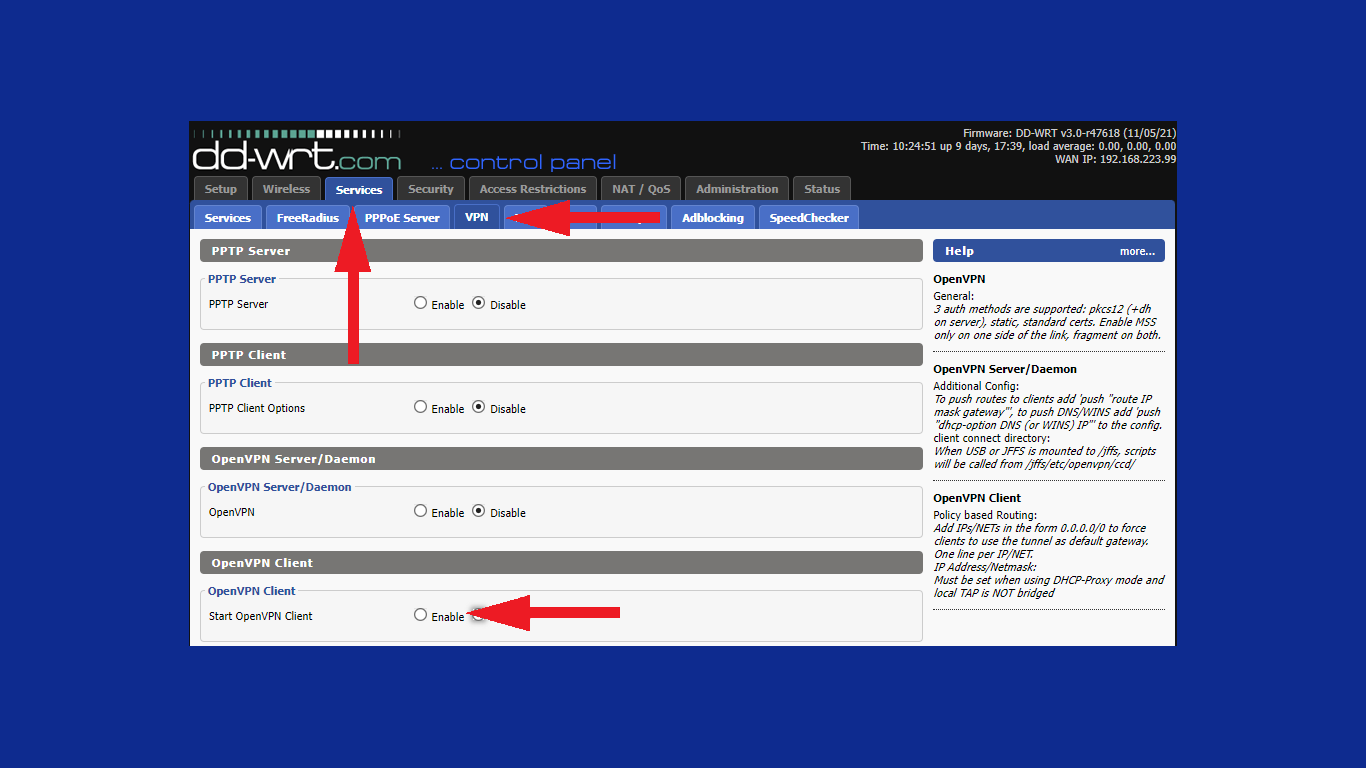

Go to the DD WRT interface and open the Services tab followed by VPN, and Enable the VPN Client at the bottom of the page.

Step 3

Enable
  • CVE32019-14899 Mitigation
  • User Pass Authentication
  • Advance Option - NAT
Enter GoodAccess Credentials
  • Server IP/name - Hostname of GoodAccess Gateway (Step 1)
  • Username - VPN Username (Step 1)
  • Password - VPN Password (Step1)

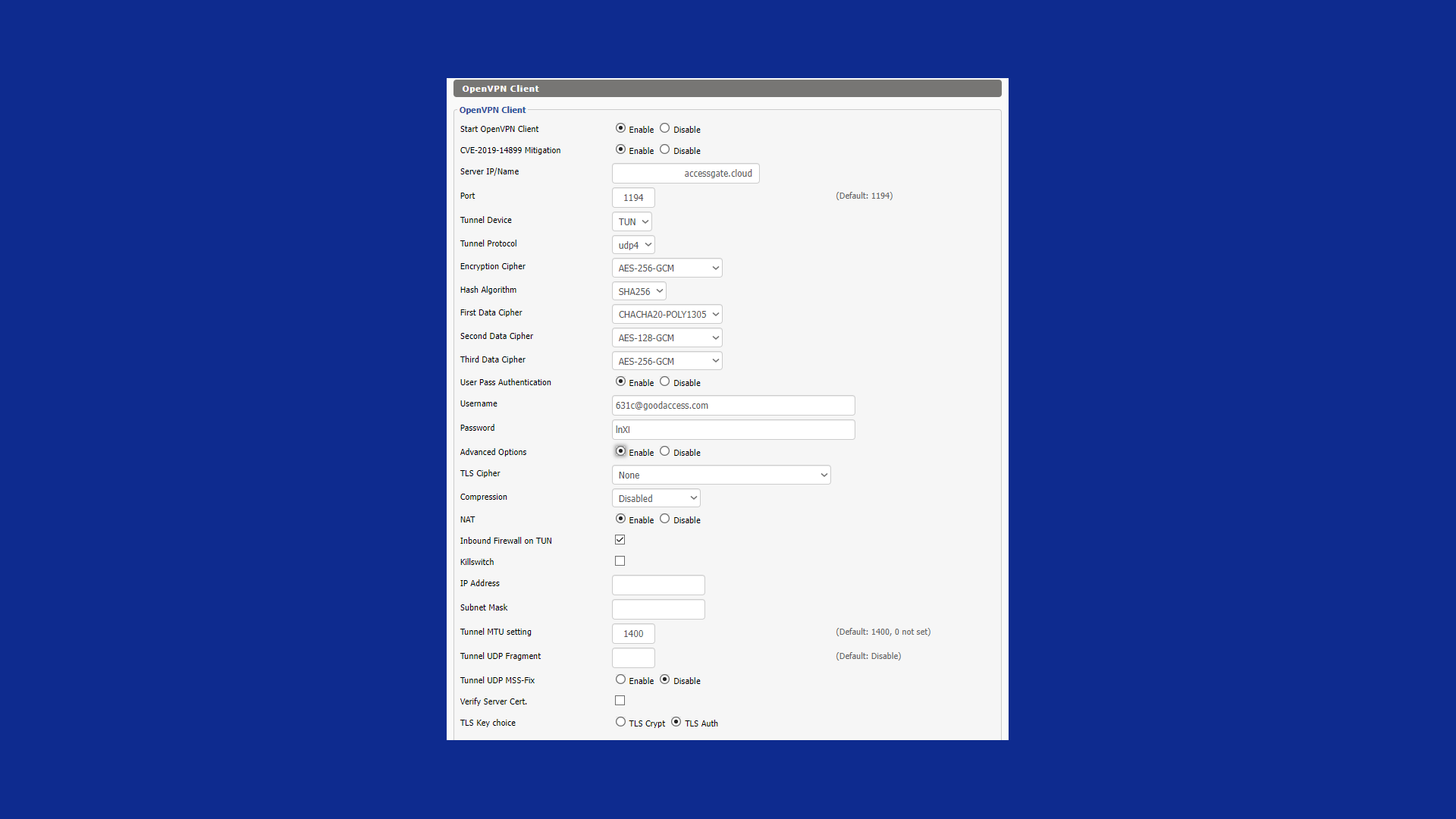

Set the rest of the configuration as shown in the screenshot below
  • Port - 1194
  • Tunnel Device - TUN
  • Tunnel Protocol - udp4
  • Encryption Cipher - AES-256-GCM
  • Hash Algorithm - SHA256
  • TLS Cipher - None
  • Compression - Disabled
  • Tunnel UDP MSS-Fix - Disabled
TLS Key Choice - TLS Auth

Step 4

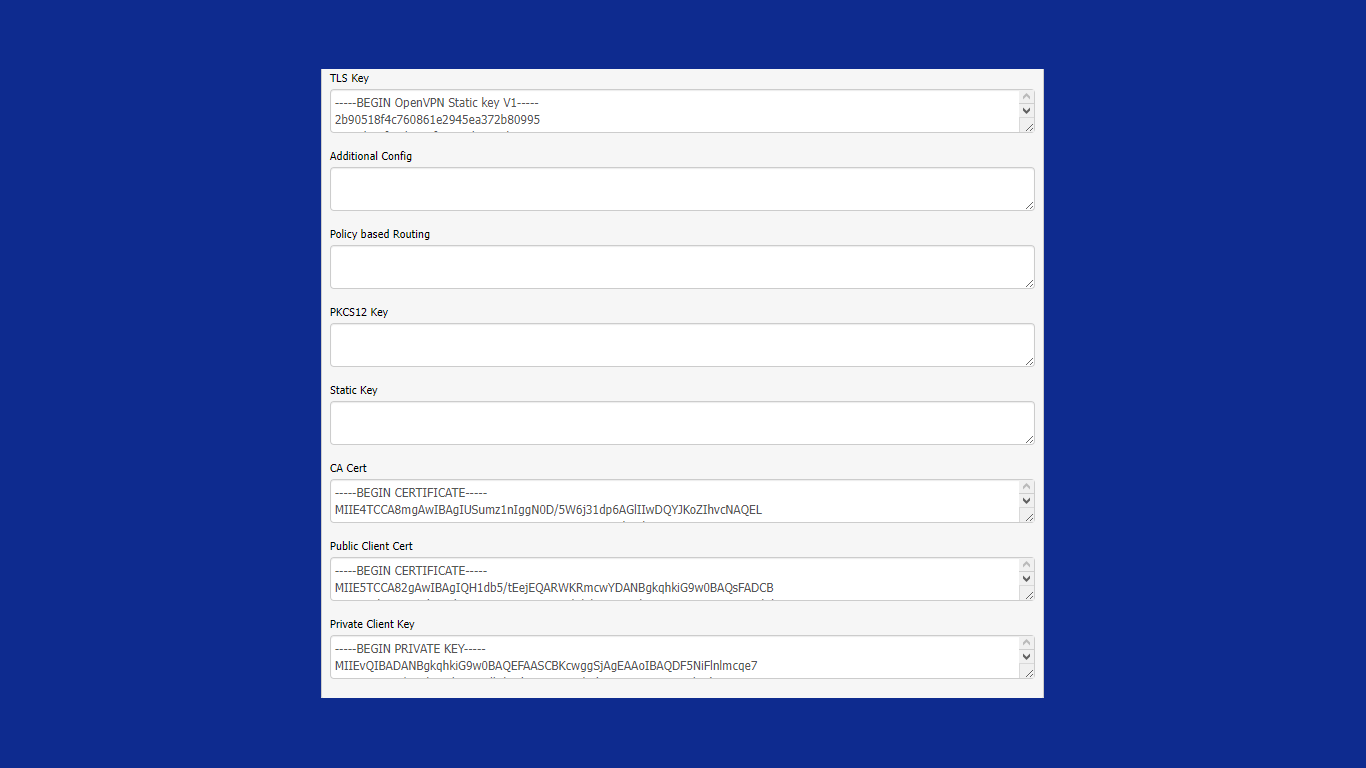

Enter all the necessary Keys and Certificates (CA certificate and Setup Files from STEP 1).
Open Certificates and Keys in Notepad and copy the details:
  • TLS Key - ovpn-key.key
  • CA Cert - ca.crt
  • Public Client Cert - user.cert.crt
  • Private Client Key - user-key.key

Step 5

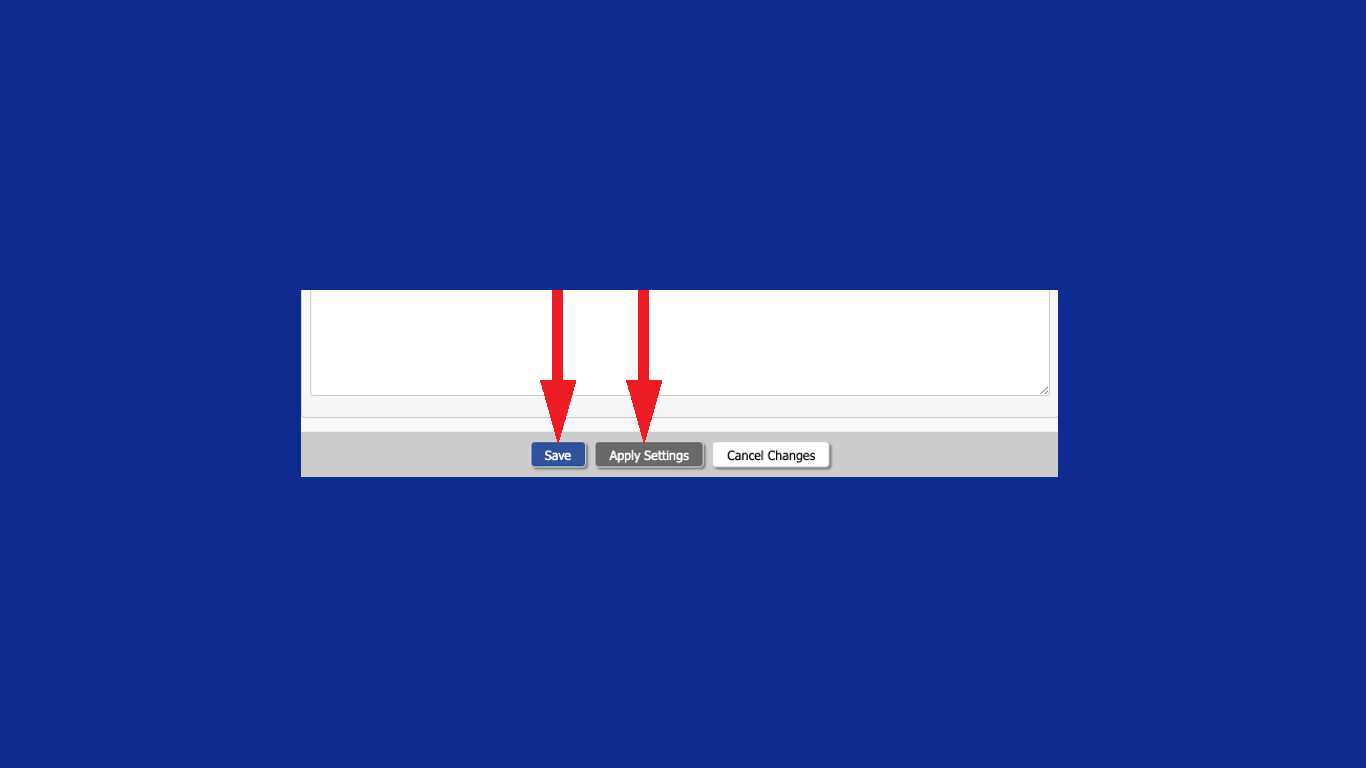

Don't forget to Save and Apply Settings.
Is necessary to Save first!

Step 6

You can check if the modem has connected in the GoodAccess Acces log or check you IP at www.whatismyip.com.
